  • Ultra-light Armored FO Cable for Field Operation
    ❤ Add to collection

  • Ultra-light Armored FO Cable for Field Operation

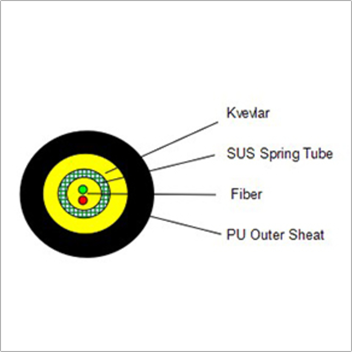

    Structure Parameter of Cable
    ItemsContents UnitSpecifications
    Fiber CountNumber--1
    Fiber----G657A1
    Color--Natrual
    Optical Fiber per tubeNumber--1
    Cable StructureNumber----
    Tight-buffered FiberMaterial--LSZH
    CountsNumber1
    Diametermm0.9
    Color--Blue
    Flexible Steel tubeMaterial--SUS   204/301/316
    Outer diametermm1.6±0.05
    Insider diametermm0.95±0.05
    Gapmm0.15±0.05
    Stength MemberMaterial--Aramid   yams
    Model Den1000
    Outer JacketOuter   Diameter±0.13
    Material--LSZH
    Color--Black
    Thicknessmm0.5
    Cable Weight±15%kg/km19
    Printing contentsInterfiber     GJFKH SM 1F Armared Fiber Cable *****M or according to customer’s   require
    Note   : 1.sizes and values without tolerances are nominal values.
    Mechanical & Environmental Performa
    ItemsContents Value

    Max.tensile loadShort   term250N

    Max.crush resistanceShort   term1000N/   100m

    Min.bending radiusInstallation20   x cable diamete

    Operation10   x cable diamet

    Temperature rangeOperation-25℃~+75℃

    Installation0℃ ~+40℃

    Storage/transportation-20℃~+60℃
