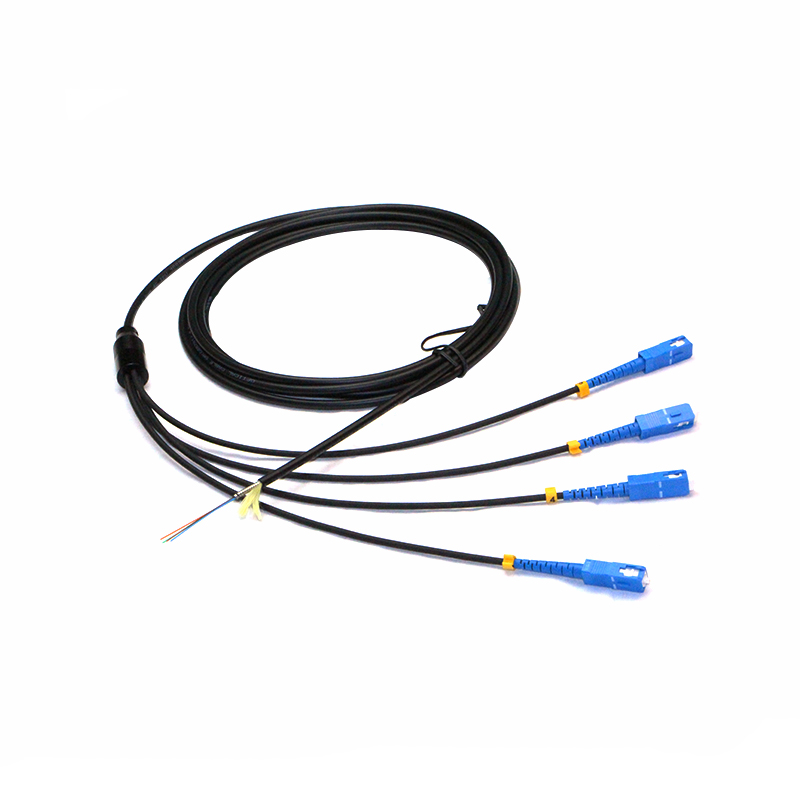

The armored fiber optic cable which can be freely used like electrical wire,this item is protected by flexible stainless steel tube. Compared with regular fiber cable,it has advantaged performance of High compression & impact resistance,anti-Rodent.it is widely used in various terrible environment.
Features:
1 High tensile and crush performance;
2 With Stainless steel tube as protection, cable can be twisted without damaging fiber;
3 Anti-rodent and anti-bird-pecking
4 widely used in Military telecommunication application;
Application:
1 Military communications
2 Coal mines, oil wells, natural gas, etc.
3 Geological Exploration Communication
4 Radio and television relay
5 Emergency optical fiber communication
Specifications:
Item | Singlemode | Multimode | |||
Outer diameter | 4.0mm,5.0mm | 4.0mm,5.0mm | |||
Standard color | black | black | |||
Cable weight | 25kg/km approx | ||||
Operating temperature | -40℃~+80℃ | ||||
Storage temperature | -40℃~+80℃ | ||||
Tensile strength | Short term | 1000N | |||
Long term | 500N | ||||
Compression resistant strength | ≥2000N/100MM | ||||
General attenuation | 1310nm | ≤0.4dB/km | 850nm | ≤3.0dB/km | |
1550nm | ≤0.3dB/km | 1300nm | ≤1.0dB/km | ||
Minimal Bending radius | ≥30D | ≥30D | |||
Printing contents(Example) | OPTICAL CABLE SM(G652) 4.0mm DUPLEX TPU XXXXM | OPTICAL CABLE MM(62.5/125) 4.0mm DUPLEX TPU XXXXM |
