t is specially designed for military field optical cables. The neutral bayonet locking structure can
realize quick and arbitrary connection between head and seat, head and head, seat and seat.
Multi-core connection and blind insertion; low connection loss and high reliability; ruggedness,
waterproof, dust-proof, harsh environment resistance, etc., can be used in various field military optical

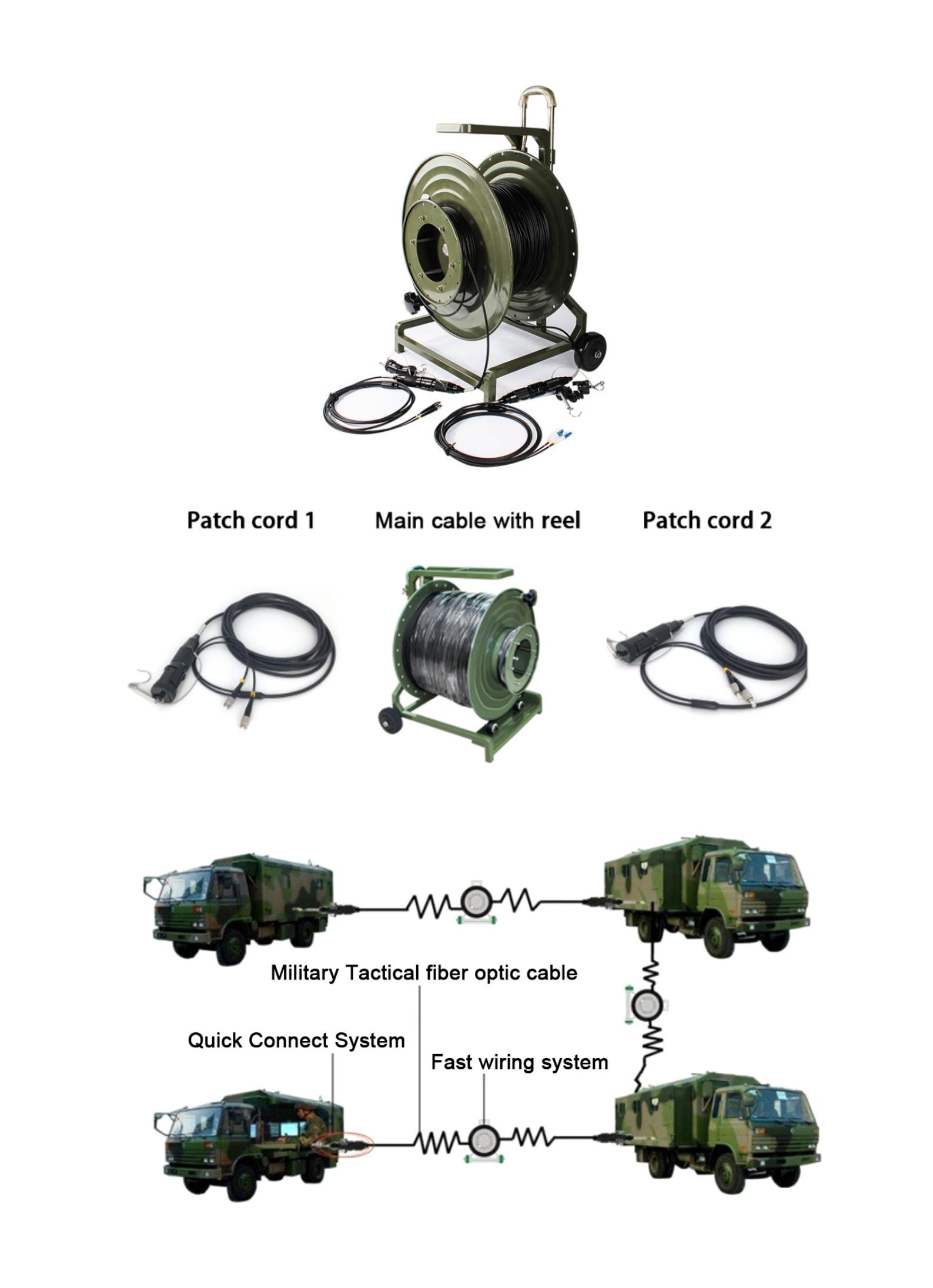

fiber communication networks, military computer systems, airborne or ship-borne Temporary
connection of field optical paths such as equipment and emergency repair optical cable systems.
It is specially designed for military field optical cables. The neutral bayonet locking structure can
realize quick and arbitrary connection between head and seat, head and head, seat and seat.
Multi-core connection and blind insertion; low connection loss and high reliability; ruggedness,
waterproof, dust-proof, harsh environment resistance, etc., can be used in various field military optical
fiber communication networks, military computer systems, airborne or ship-borne Temporary
connection of field optical paths such as equipment and emergency repair optical cable systems.
l Features:
1. Using neutral connection technology, no need to use adapters or flanges for quick connection
2. The positioning pin design ensures the correct connection of multi-core optical fibers at one time and can be blind inserted
3. Aluminum alloy shell, light weight and high strength
4. The connector plug and socket are provided with dust cover to ensure the quality of the connection
5. Standard ceramic pin and housing connection dimensions are fully compatible with existing equipment
l Application:
1. Military communications
2. Coal mines, oil wells, natural gas, etc.
3. Geological Exploration Communication
4. Radio and television relay
5. Emergency optical fiber communication
l Performance:
Item | Data |
Insertion Loss | ≤0.3dB |
Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
Mechanical life | 1000cycles |
Working temperature | -55°C~+125°C |
Protection Level | IP68 |
Bending strength | ≥500Mpa |
Relative humidity | 90%~95% at 40℃±2°C |
Working air pressure | 4.39kPa~101.33kPa |
Salt fog resistance | 5%Nac fog 96h |
Vibration | 10Hz~500Hz |
Shock | acceleration 980m/S2 |
