  • 0.9mm Fiber Optical Pigtail
    0.9mm Fiber Optical Pigtail
    0.9mm Fiber Optical Pigtail
    0.9mm Fiber Optical Pigtail
    ❤ Add to collection
  • 0.9mm Fiber Optical Pigtail

    Application:

    - Telecommunication network
    - CATV system
    - Local Area Network
    - Active/Passive device


    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
Description

Application:

- Telecommunication network
- CATV system
- Local Area Network
- Active/Passive device

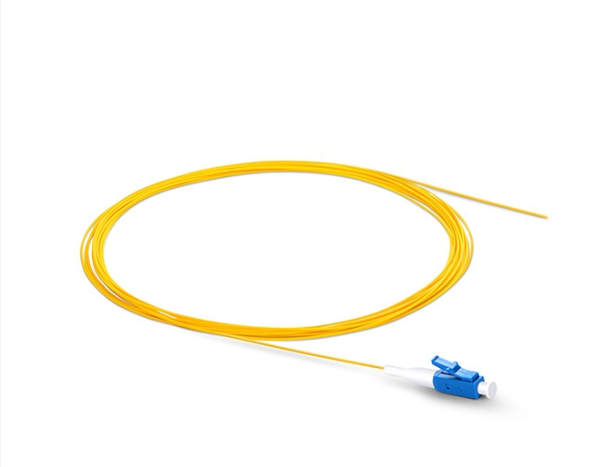

Product picture:










Application:

- Telecommunication network
- CATV system
- Local Area Network
- Active/Passive device

Feature & Benefits

- Meets Telcordia GR-326-core, JIS C-5973, TIA/EIA 604
- Customer length
- Various connector type available
- Environmental stable

Specifications



Type

SM

MM

Characteristics

UPC

APC

UPC

PC

Insertion loss(dB)

≤0.3dB

≤0.3dB

≤0.3dB

0.3dB

Return loss (dB)

≥50dB

≥60dB

35dB

≥35dB

Attenuation(Maximum)

0.4dB@1310nm

0.3dB@1550nm

0.4dB@1310nm

0.3dB@1550nm

3.0dB@850nm

1.2dB@1300nm

3.0dB@850nm

1.2dB@1300nm

Attenuation(dB)

 SM:1310 nm≤0.35dB/km;1550 nm≤0.25dB/km

    MM:850 nm≤3.0dB/km;  1300 nm≤1.0dB/km

Durability(dB)

500/Matings

Operating Temperature(dB)

-40℃~ +85

Noted: Products shall be subject to any changes without additional notices;
