  • ODVA-LC Duplex waterproof patch cord IP67

    ODVA-SC/LC/MPO connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The ODVA-LC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68. They are well suited for Industrial ,aerospace and defense applications.

    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
Description

ODVA-SC/LC/MPO connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The ODVA-LC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68. They are well suited for Industrial ,aerospace and defense applications.


Features

1  Various types:it has 3 series:LC duplex,SC simplex,and MPO.

2 Fast connection:the unnique spira structure makes connection easy and fast.

3 Water and dust proof:there is rubber cushion inside,the stability is good and the grade can be IP67.

4 Low insertion/return loss, steady optical transmitting.

5 Light weight, waterproof, dustproof, moisture proof, Metal hard housing

6 Wide range of operational temperature for outside plant -40 to+85°C

7 100% optically tested to ensure quality performance assemblies.


Optical Performance


Fiber Path Cord ModelSMMM
Fiber Count2 core and OEM
PolishPC
Housing ColorBlue or customizedBeige or customized
Test Eavelength1310/1550nm850/1300nm
Insertion Lossless than 0.35dBLess than 0.35dB
Return Loss>50dB>30dB
Durability (500 matings)Less than 0.2dB
Cable OD4.8mm, 7.0mm armored / non armored or customized
Storage temperature-20~70℃
Operating temperature-40~85℃

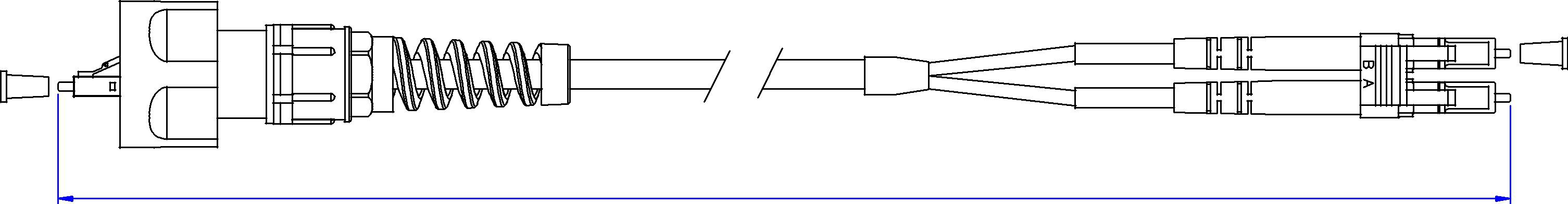

ODVA Assembly Diagram:
