High denisty patch panel 1U and 4U is full loading up to 576 cores with LC connectors, MPO modular for Multi-application such as data center, network, indoor and outdoor cable application is available.
Rack-mounted design, it is very flexible for network setting, Time and labor saving.
Features:
• Standard 19’’ installation; fully enclosed structure; with high intensity and anti-erosion performance
• Rack-mounted design, easy for operation; time-saving and easy for moving.
• Full front operation; can be installed against wall,
• Capacity up to 576 fibers with 12 core on each modular, more flexible to meet project’s demand with different fiber counts.
Application:
• Data-center
• Networks

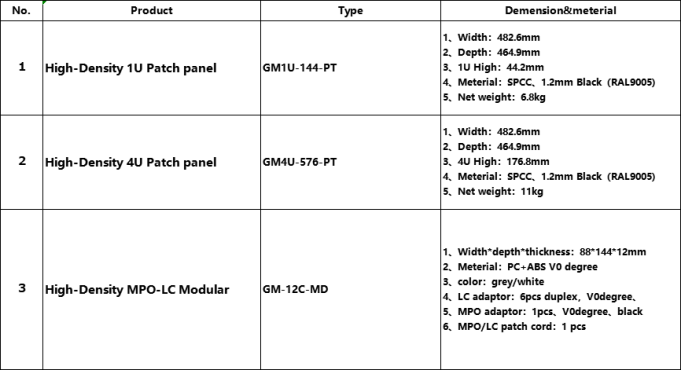

Specification：

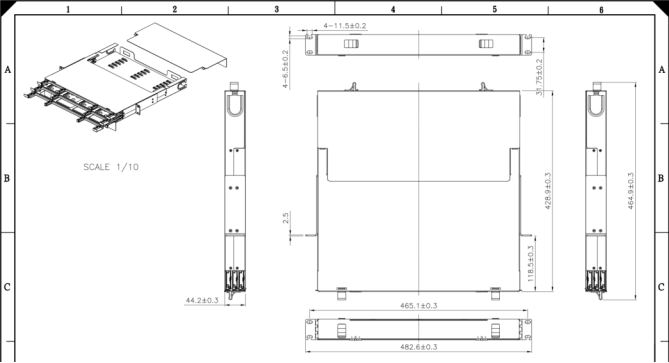

Technical Drawing：
Remark：
12-576 cores can be applied, we offer any customer-design products as well.
